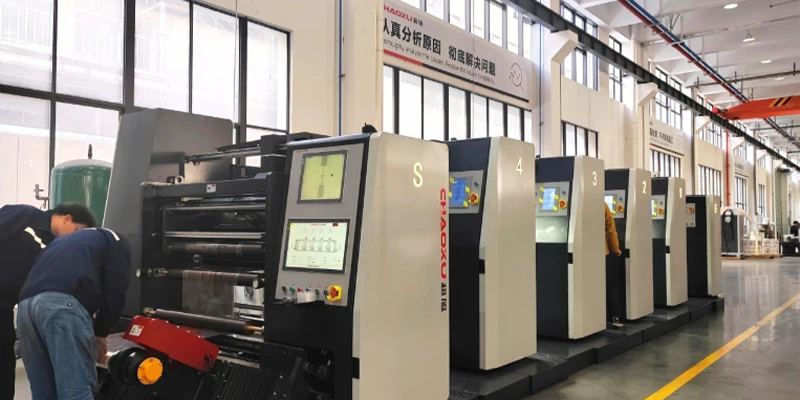

CHAOXU CX-JZ.D Full Servo Flexographic Printing Machine – Built for Paper Packaging

1. Why Are Paper Packaging Plants Paying More Attention to Full Servo Flexo Presses?

In recent years, demand for disposable paper packaging like cups, bowls, and bags has grown fast. More orders come with higher requirements – nice graphics, accurate colors, fast delivery, and food‑grade environmental compliance. Many factories using old gear‑driven printing presses are starting to feel the pain: unstable registration, long changeover times, high waste. The CX‑JZ.D unit‑type full servo flexographic press from CHAOXU was designed specifically to solve these problems. It replaces traditional mechanical drives with full servo digital control, precisely adjusting every step from unwinding to rewinding. This gives you both printing accuracy and lower production waste.

2. A Few Solid Advantages of the CX‑JZ.D.

This machine is not just about slapping on servo motors. The whole structure and control system have been optimized for real‑world production. Here are some benefits you will notice on the shop floor:

2.1 Accurate registration, even at high speed

Experienced flexo operators know that once web tension fluctuates, colors start drifting. The CX‑JZ.D uses closed‑loop tension control, plus automatic web guide and automatic register inspection. Real‑world registration accuracy reaches ±0.12mm. Even at the top speed of 200m/min, multi‑color patterns stay perfectly aligned. That means lower startup waste – and for high‑volume orders like paper cups and bowls, the savings go straight to your bottom line.

2.2 Eco‑friendly and cost‑effective – water‑based or UV ink

Environmental regulations in markets like the US and Europe are getting stricter. Many export orders now require water‑based or UV inks. The CX‑JZ.D works with both, and it comes with high‑quality ceramic anilox rollers that deliver even ink transfer and last a long time – no dark or light spots. Also, the machine can be configured as an inline line with dust cleaning, printing, and die‑cutting. Paper goes in, printed and cut blanks come out – no extra handling steps. That saves labor and time.

2.3 Flexible drying options, no fuss with different materials

Different inks and papers need different drying methods. The CX‑JZ.D offers hot air, IR, and UV drying – you pick what fits your job. With proper drying, you won't see smearing or sticking at high speeds. Whether you run thin glossy paper or thicker paperboard, the press handles it smoothly.

3. Technical Specifications at a Glance (Three Models)

CHAOXU offers three standard web widths for the CX‑JZ.D series, so you can choose what fits your production scale:

• Model CX‑JZ.D‑650 – max web width 650mm, repeat length 250‑800mm, max speed 200m/min
• Model CX‑JZ.D‑850 – max web width 850mm, repeat length 250‑800mm, max speed 200m/min
• Model CX‑JZ.D‑1000 – max web width 1000mm, repeat length 250‑800mm, max speed 200m/min

You can also customize unwind/rewind diameters and drying type based on your order needs.

4. What Can This Machine Actually Print?

The CX‑JZ.D was built for the paper packaging industry, so its applications are focused – but flexible enough:

• Paper cups, bowls, buckets – the main focus. Print quality is optimized to feed directly into cup forming machines, with food‑grade safety in mind.
• Paper bags and carry bags – shopping bags, takeout bags, gift bags. Multi‑color registration works fine.
• Cartons and corrugated pre‑print – food boxes, gift boxes, liner board for corrugated boxes. Good color reproduction.
• Food wrapper paper – candy wrappers, baking paper, snack wrappers – meets food contact standards.
• Other film materials – if needed, the press can also handle OPP, PET, PVC films, helping you expand your business scope.

5. Why the CX‑JZ.D Is Worth Considering

There are plenty of flexo presses on the market, but not many are deeply optimized for paper packaging – especially cups and bowls. Here is what makes the CX‑JZ.D a solid choice:

1. Built for paper packaging – not a general‑purpose press with minor modifications. It was designed from the ground up around paper cup, paper bag, and food wrapper production, and it connects smoothly with downstream forming equipment.
2. High speed, low waste – 200m/min is fast for this class, and the intelligent pre‑registration system cuts down material waste during changeover and setup.
3. Export‑ready and compliant – supports water‑based and UV inks, meeting food safety and environmental standards in major markets like the US and Europe. No worries about getting stopped at the border.
4. Three widths, flexible customization – from small‑medium batches to large, long runs, you can pick the right model. Repeat length covers 250‑800mm, so both small and large formats are possible.
5. Sturdy and reliable, low maintenance – key components are from top brands, and the mature design means under normal care it will run well for 7‑8 years or more.

6. Final Thoughts

The paper packaging and disposable tableware market is still growing, but competition is real. The old strategy of competing only on price is fading. What matters now is print quality, delivery speed, and environmental compliance. The CX‑JZ.D full servo flexo press helps you find a practical balance between "printing well" and "printing fast." Whether you are a small‑medium plant looking to upgrade old equipment or a large factory expanding capacity, it is worth seeing a sample run for yourself.

If you are interested, contact CHAOXU to arrange a real material test – bring your own paper rolls and plates, run a job, and see if it fits your floor.
