Unit Type Full Servo Flexographic Printing Machine

This series of machine is mainly used for paper cup printing, paper bag printing,paper box printing, corrugated carton preprint and food wrapper paper printing etc

Max . Print Width: 1000mm-1600mm
Max . Speed: 150 m/min
Overprint Accuracy: +0.12mm

Main Characteristics

Capable of inline cleaning dust, printing, and cutting
Eco-friendly printing, adopt water-based ink or Uv ink
Ceramicanilox rollers can be used for a long time, and can supply ink appropriately.
Warm drying, IR drying and UV drying are available
Adopt closed loop tension control system to make printing tension much more stable , and register much more accurate.
Automatically electronic web-guide system
Automatically printing register and inspection system

Specifications

Model	CX-JZ.D1050	CX-JZ.D1350	CX-JZ.D1650
Max. Web Width	1050mm	1350mm	1650mm
Max. Printing Width	1000mm	1300mm	1600mm
Printing Repeat	250-800mm	250-800mm	250-800mm
Max. Unwinding Diameter	800	800	800
Max. Rewinding Diameter	800	800	800
Max. Printing Speed	160-200m/min	160-200m/min	160-200m/min
Drying	Hot Air Drying / IR Drying / UV Drying
Printing Material	60-300gsm paper roll and OPP, PET, PVC

Physical application

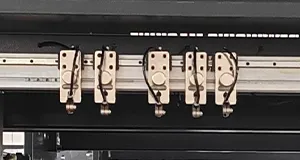

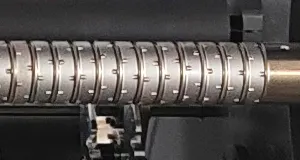

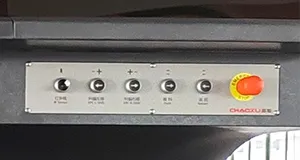

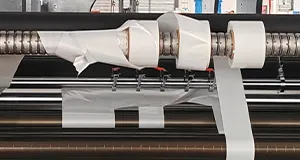

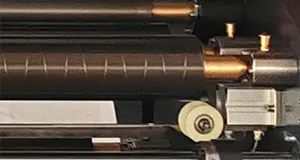

Details

Lorem ipsum dolor sit amet, consectetur adipiscing elt. Aenean euismod laoreet.

FAQ

Intelligent production management

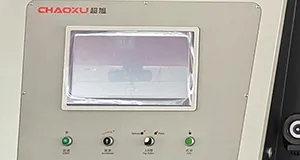

Integrating PLC and touch screen, calling preset parameters with - keys, real-time monitoring of production and meter counting, improving efficiency and stability.

Intelligent production management

Integrating PLC and touch screen, calling preset parameters with - keys, real-time monitoring of production and meter counting, improving efficiency and stability.

Intelligent production management

Integrating PLC and touch screen, calling preset parameters with - keys, real-time monitoring of production and meter counting, improving efficiency and stability.
