Introduction

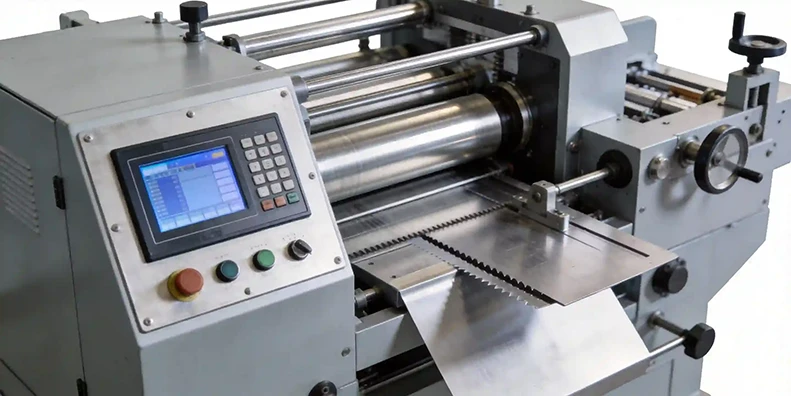

In the fast-paced world of packaging and printing, precision and efficiency are paramount. Chaoxu Machinery's high-speed slitting machines represent the cutting edge of roll slitting technology, delivering unmatched accuracy, reliability, and productivity for modern manufacturing facilities.

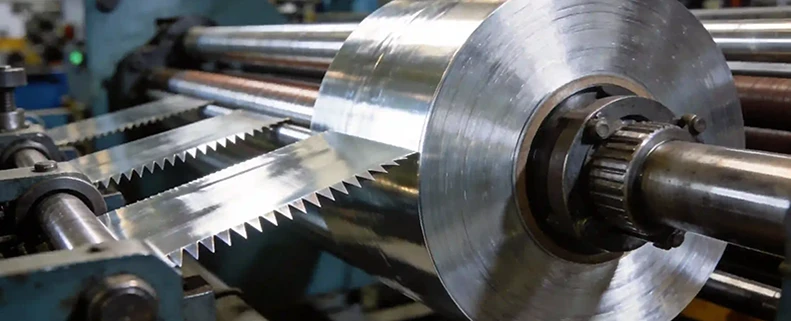

Technical Specifications
The CX-FQ series high-speed slitting machine is engineered to handle a wide range of materials including BOPP, PET, CPP, CPE, PVC, aluminum foil, adhesive paper, leather paper, and specialty industrial substrates. Key specifications include:
- Slitting Speed: 10-500m/min adjustable based on material properties
- Rewinding Capacity: Maximum 600mm diameter finished rolls
- Raw Material Handling: Up to 800mm diameter parent rolls
- Precision Control: ±0.05-0.1mm slitting accuracy across all operating speeds
Core Technological Advantages
1. Precision Engineering
The machine features a thickened steel plate frame structure that provides exceptional rigidity, minimizing vibration during high-speed operation and ensuring long-term stability even under continuous production loads.
2. Advanced Control System
Equipped with Siemens PLC and intuitive touchscreen interface, operators can easily set parameters, monitor production in real-time, and access remote diagnostic capabilities for predictive maintenance.
3. Intelligent Tension Management
The closed-loop automatic tension control system utilizes magnetic powder brakes and high-precision sensors to maintain constant material tension throughout the slitting process, preventing stretching deformation and ensuring consistent roll quality. Multi-stage taper tension control adapts to the unique characteristics of different materials.
4. Wide Material Compatibility
Designed for flexibility, these slitting machines process films, paper, non-wovens, and metal foils for applications in flexible packaging, cups, labels, and industrial components.

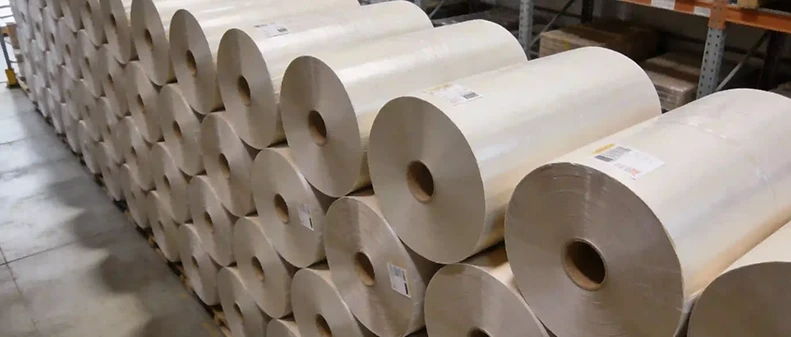

Application Solutions
Chaoxu Machinery's slitting technology enables manufacturers to produce high-quality packaging solutions across various industries:
- Food Packaging: Potato chip bags, snack packaging, and flexible food containers
- Beverage Packaging: Paper cups, shrink wraps, and bottle labels
- Retail Packaging: Shopping bags, paper bowls, and takeout containers
- Industrial Materials: Lithium battery separators, copper foil, and specialty substrates
Customization Capabilities
Beyond standard models, Chaoxu offers comprehensive customization services to meet specific production requirements:
- Tailored printing width and color station configurations
- Integrated inline processes including die cutting, varnishing, and dust removal
- Customized drying and tension systems for specialized materials
- Flexible automation levels from semi-automatic to fully integrated production lines
Frequently Asked Questions
Q: What automation features are included in your slitting machines?
A: Standard features include Siemens PLC control, touchscreen HMI, automatic edge guiding, length counting, roll diameter calculation, automatic shutdown, and support for remote diagnostics.
Q: Which materials are your slitting machines suitable for?
A: Our machines process BOPP, PET, CPP, CPE, PVC, aluminum foil, adhesive paper, leather paper, lithium battery separators, copper foil, and other specialty materials.
Q: What tension control system do you use and why?
A: We employ closed-loop automatic tension control using magnetic powder brakes and high-precision sensors to maintain constant tension, preventing material deformation and ensuring consistent roll quality.
Q: How do you ensure neat and consistent winding?
A: We implement multi-stage taper tension control combined with precision web guiding (EPC) and heavy-duty shaft design to guarantee uniform, defect-free winding.
Q: What is the typical slitting accuracy and maximum speed of your slitters?
A: Our slitters maintain precision of ±0.05-0.1mm across speeds ranging from 10-500 m/min, depending on material and machine configuration.
Conclusion
Chaoxu Machinery's high-speed slitting machines represent the pinnacle of precision engineering in the packaging industry. With advanced automation, intelligent tension control, and unrivaled material compatibility, these systems empower manufacturers to achieve higher productivity, superior product quality, and a competitive edge in today's fast-paced market. Contact us today to explore how we can elevate your production efficiency.
